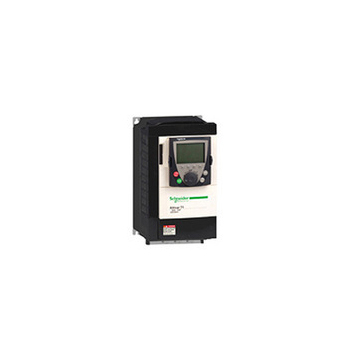

Altivar Drives for Heavy Duty Industry

200... 240 V single-phase.

200... 240 V/380... 690 V 3-phase, 50/60 Hz.

  • Speed regulation by flux vector control with or without sensor
  • Speed range: from 1 to 1 000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode
  • Graphic terminal: plain text, navigation button, configurable function keys, "Simply Start" menu
  • Protection of motor and of drive
  • "Power Removal", ATEX safety functions
  • More than 150 functions available: PID controller, brake control suited to travelling, hoisting and slewing movements
  • Integrated EMC filter class A
  • I/O extension cards, interface cards for encoder
  • Communication cards: Fipio, Ethernet, Modbus Plus, Profibus DP, Device Net, Uni-Telway, Interbus
  • Controller Inside programmable card


  • Unique range up to 630 kW, exceptional performance, advanced functions
  • Open to all communication networks, applications, users Altivar 71 provides ingenious solutions for all your specific requirements
  • Applications:
    High performance applications (constant torque):

  • Material handling
  • Hoisting
  • Wood machines
  • Process machines
  • Textile machines
  • Packaging
