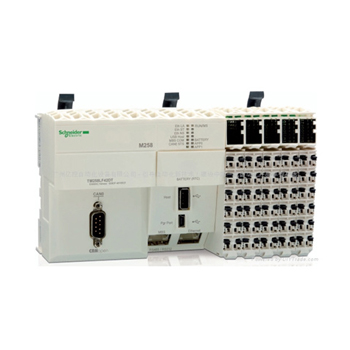

Modicon M258


Performance, openess and flexibility Thanks to a performant CPU (22ns/inst), embedded communication ports as Ethernet & CANopen master and advanced built-in features as data logging, WebServer and FTP server.

Speed up machine design

  • SoMachine software
  • Maximise operation and reduce maintenance
  • Diagnosis through transparency and remote access
  • Reduce size ,cost & assembly time

  • With basic configurations close to machines needs
  • Improve your machine performance

  • Independent axis up to16 axes
  • Typical digital I/O needs: up to 2400 I/Os
  • Typical analog IO needs: analogue I/O: 12 ou16 Bits resolution
  • Advanced features: HSC / Reflex output / Event Tasks Peripheral devices : Drives, servos: Up to 16 (avg. 8) HMI: Graphic Upper level connection: embedded ethernet

Discover : "Flexible Machine Control"

  • 1 software environment SoMachine
  • Multiple hardware control platforms :

Logic controllers Modicon M238

Logic controllers Modicon M258

Motion controllers Modicon LMC058

HMI controllers Magelis XBTGC

Drive controllers Altivar IMC

Benefits Just incomparable

Compact and totally expandable, the Modicon M258 Logic Controllers are destinated to the machine builders (OEMs) by offering performant solutions in terms of speed control, high speed counting, motion and communication networks. It has been designed in order to satisfy the market requirements in terms of simplicity of installation and evolution. 2 offers are available for standard or severe environment. The protection of products dedicated to severe environment enables Modicon M340 products to be used in:


  • General machine control
  • Conveying
  • Packaging
